Our manufacturing /Products facilities and Procedure involves all the machineries and techniques followed with stringent quality control measures in order to achieve and maintain the highest quality of our products in order to meet any international standards like ANSI, BS, IS etc. Every manufacturing phase, from forging, machining for testing, is carried out with a vast array of modern equipment and machinery. Each material is controlled throughout the manufacturing phase, Thanks to rigorous QA & QC department which keep monitoring the progress of the work and assuring that to satisfy the requirement of client with quality.

A. QUALITY ASSURANCE PLAN AT FORGE SHOP FOR S.S. FITTINGS

1. Raw Material (Pipes, Rounds& Billets) of reputed mills is procured confirming the chemical requirements along with the Test Certificates.

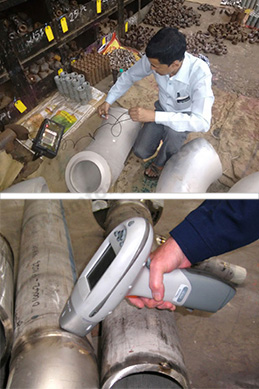

2. Raw Material received is identified and chemical analysis is carried out as a check test on 100% of the material received and compared with the Mill Test Certificate and taken up for forgings and forging is done at the controlled temperature with the help of temperature indicator.

3. Solution annealing of the flanges is the next step which is done immediately after the forging process is over to remove all carbide precipitation.

4. At this stage one piece from each heat is checked for chemical, tensile and micro analysis and if the material confirms to the necessary specification then only it is taken up for final machining also IGC practice ā€˜ā€™Eā€™ā€™ us carried out as required by the customer. After forging heat numbers are punched on each forging.

B. QUALITY ASSURANCE PLAN AT FORGE SHOP FOR C.S. FITTINGS & FLANGES

1. Raw Material(Pipes, Rounds & Billets) is procured from recognized Mills Confirming to the chemical requirements along with the Mill Test Certificate.

2. Raw Material received is identified and chemical analysis is carried out as a check test and compared with the original Mill Test Certificate. This test is carried out at random on about 20% of the material received.

3. Raw Material which has passed check analysis is cut and taken up for forging and forging is done at the controlled temperature at normalizing range with the help of temperature indicator and reorder. After forging heat number are hard punched on each forging.

4. At this stage one piece from each heat is checked for tensile and hardness test and if the material confirms to the necessary specifications then only it is taken up for final machining.

C. QUALLITY ASSSURANCE PLAN AT MACHINE SHOP

1. Forging / Fittings are now taken up for final machining and heat nos. which were stamped on the forgings are now transferred on the finished flanges. Also the necessary markings like type of Flanges / Fittings pressure rating, size and material specifications are stamped on each flange.

2. Finished and machined flanges are 100% checked for dimensions by quality control inspector. Also 100% flanges /Fittings are dye penetration checked at the beveled ends for any defects.

APPLICABLE MATERIAL

CARBON STEEL FITTINGS

FOR MODE RATE TEMPERATURE

ASTM/ASMESA23WPB
ASTM/ASME SA234 WPC

FOR LOW TEMPERATURE

ASTM/ASME SA420 WPL6

CARBON/NICKEL FOR LOW TEMPERATURE

ASTM/ASME SA420 WPL3

HIGH YIELD MATERIALS

MSS-SP-75 WPHY42
MSS-SP-75 WPHY46
MSS-SP-75 WPHY52
MSS-SP-75 WPHY60
MSS-SP-75 WPHY65
MSS-SP-75 WPHY70

ALLOY STEEL

FOR ELEVATED TEMPERATURE

ASTM/ASMESA234WP1
ASTM/ASMES SA234WP2
ASTM/ASMESSA234WP11
ASTM/ASMES SA234WP22
ASTM/ASMES SA234WP5
ASTM/ASMES SA234WP9
ASTM/ASMES SA234WP91

STAINLESS STEEL FITTINGS

AUSTENITIC

ASTM/ASME SA403 WP304 (L) (H) (LN) (N)
ASTM/ASMESA403WP321(H)
ASTM/ASME SA403 WP304 (L) (H) (LN) (N) (TI)
ASTM/ASMESA403WP347(H)
ASTM/ASMESA403WP317(L)

AUSTENITIC/FERRITIC

ASTM/ASMESA403 UNS-S-31254(6% MO)
ASTM/ASMESA403 UNS-S-31803(22% MO)
ASTM/ASMESA403 UNS-S-32760(25% MO)

NON FERROUS ALLOYS

ALUMINIUM BASE

ASTMB61 GR .3003-6061

NICKEL BASE

ASTM B366 MONEL 400
ASTM B366 INCONEL 600
ASTM B366 INCOLOY 800
ASTM B366 INCOLOY 825

COPPER BASE

CUPRONICKEL 90-10 AND 70-30

TITANUM

ASTM B363 WPT2
